Railways may have had more impact on shaping the growth of Canada than in any other country – they played a fundamental role in uniting the many communities and vast landscapes of Canada, as well as being an instrument of economic growth throughout the nation’s history. Long before the arrival of European settlers, Indigenous peoples had their own methods for travelling great distances. Their equipment and method of moving across land and water was so effective it was adopted by early Europeans as they explored and settled in Canada. Early settler transport in Canada evolved in response to the fur trade. Despite long-distance and local transportation routes developing across the country, there was no alternative to road and water transportation before the 1850s. Settlement and trade occurred along these routes, which were often slow and dependent on the seasons. The advancement of railway technology and an increasing population brought the railway era to Canada. The rail was a fast, year-round system, and the construction of lines occurred with gusto in three periods of history: the 1850s, 1870-90, and 1895-1917.

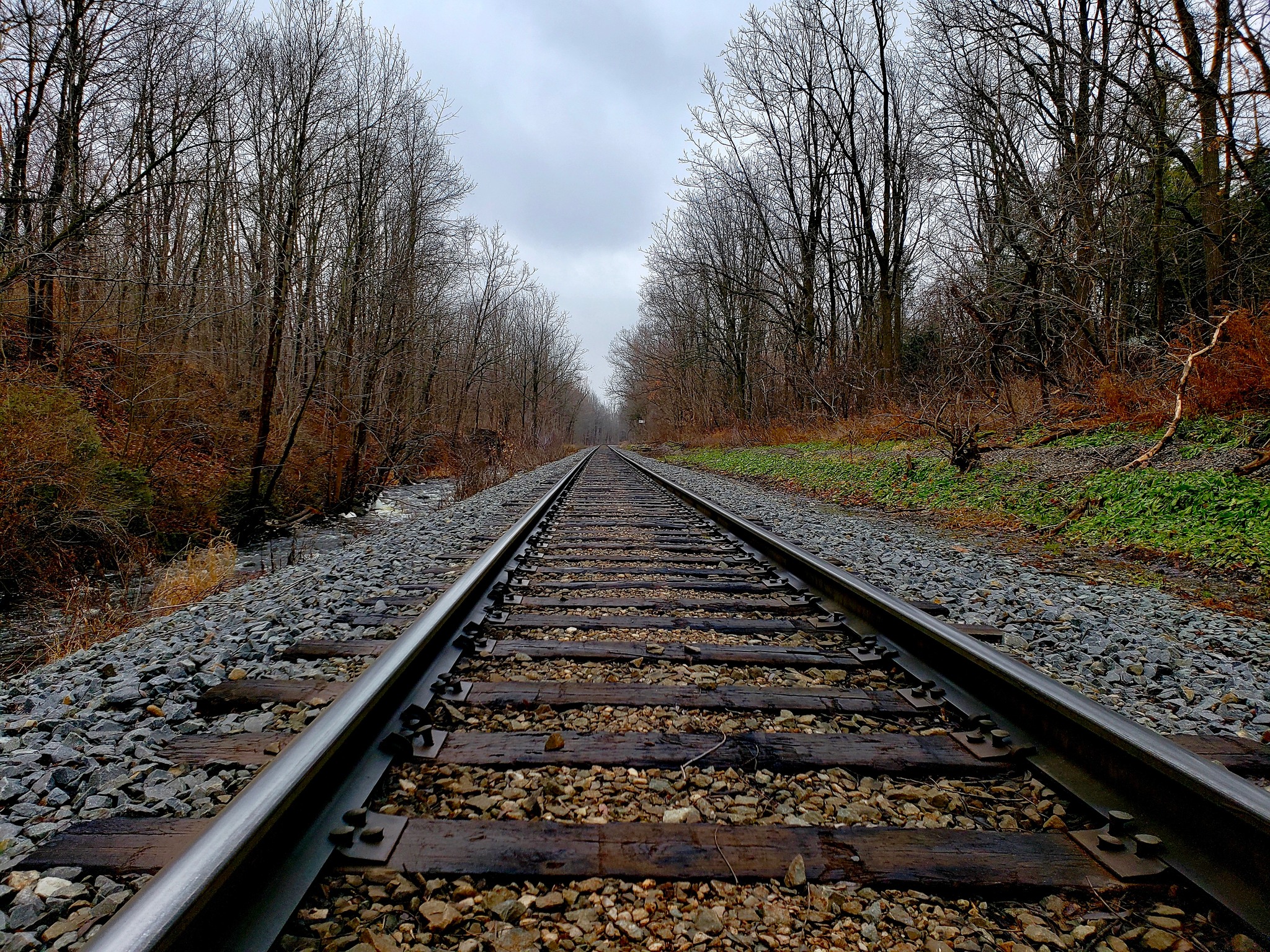

Mill Street South, August 2021 - Ryan Gaynor
Progreston rail bridge - Photo #688
As the railway spread across the landscape during the 19th century, it was far superior to the earlier trunk roads that little effort was made to maintain or upgrade them. While these roads may have been impassable in certain weather conditions, they served as routes to railway stations. As time rolled into the early 1900s, there would begin the transport tug-of-war between rail and road. Rapidly increasing motor vehicle usage pushed governments to provide properly engineered roads. The 1930s challenged the railways with loss of business due to The Depression, and motor vehicles. There was recovery of rail traffic during World War II, with rail freight more than doubling. Even so, motor vehicle activity was growing faster, and the railways couldn’t keep up. Changing technologies, such as the conversion from steam to diesel in the 1950s, allowed the railways to remain competitive. The use of intermodal freight allowed transportation systems to work together – containers could be loaded and shipped to destinations via rail as well as truck haulage. In 1966, CPR launched a ship designed for containers. In the 1990s, double-stacked containers doubled the capacity of a train without increasing its length.
Before construction, the railway route must be determined. Trial surveys were run to compare cost and characteristics of routes, keeping the steepness of the track as low as possible. Maximum grades on the GTR in the 1850s were about one percent, while modern lines are kept below 1-2 per cent. Once a satisfactory route was surveyed and purchased, the first step in construction was to build a ‘subgrade’, the permanent foundation that supported the tract. Good drainage was and is still paramount to prevent tracks shifting. Different styles of embankments were used for different situations. Well into the 20th century earth and rock was moved by man and horse-powered equipment. Some railways used steam shovels for construction, but they were best suited for large excavations. Mechanical equipment such as bulldozers and graders does not appear to come into common use until the 1930s and ‘40s.
Track design fundamentals were developed in Britain and the United States in the 1830s-40s. By the time construction of rail began in Canada, track was more or less standardized. The structure includes rails, ties, ballast and track fastenings – when assembled, they provide a smooth riding surface for trains. Due to the stresses track is subjected to, this system must be of high quality and robust. Each element of the system was designed with safe, economical operation in mind, as well as assembly and maintenance. It wasn’t just the rail that had to be built – signals, bridges, tunnels, and stations were all a part of the vast network. Flamborough posed a challenge to rail travel with its escarpment and rolling rural topography. In Waterdown, the Grindstone Creek had to be moved to facilitate the introduction of the Canadian Pacific Railway - a fact often shocking to those not familiar with local rail history. Most memorable to the general public are the passenger stations, where travellers would arrive and depart, mail and telegraphs were sent and received, and freight business for the local community was conducted.

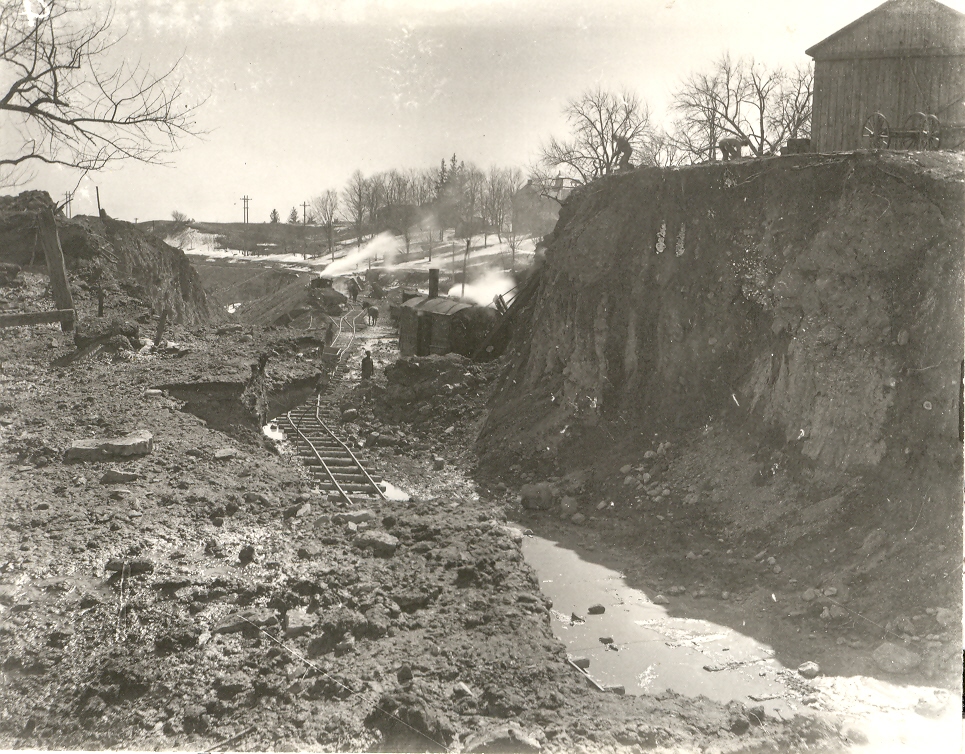

Waterdown rail construction, 1911

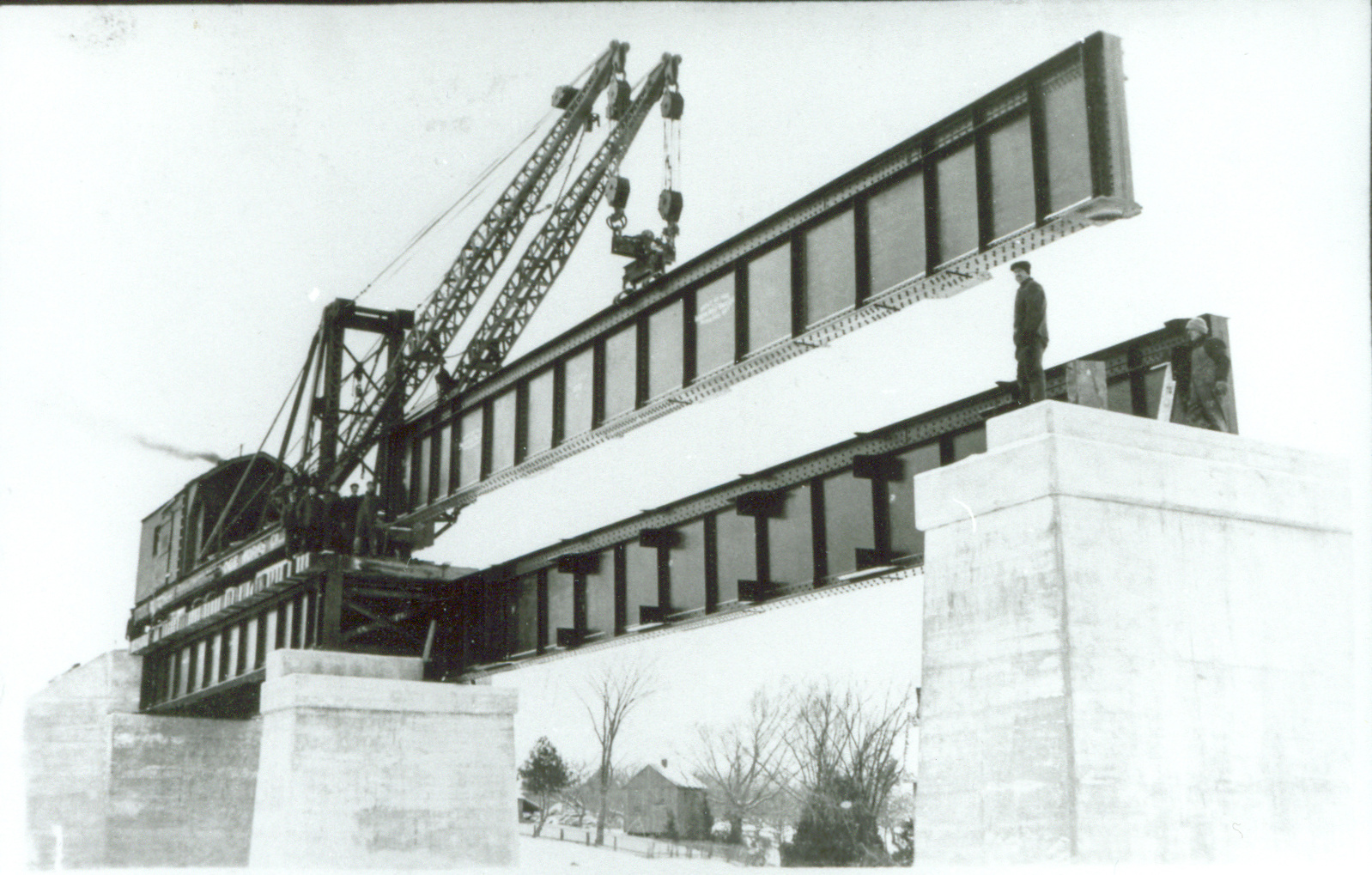

Progreston: lifting girder in place for railway line over Twelve Mile Creek, 1911
Waterdown North during construction, 1911
The list is much shorter of what didn't change with the arrival of the rail in our area than what did. Familiar landscapes were altered to facilitate construction, shipping to faraway places became easier and more economical, passenger travel was quicker and more comfortable. The economic and sociocultural changes are still evident today.
Local mills, factories and farms were able to ship their product to customers over long distances. Many mills had their own spur lines to facilitate ease of shipping. Conversely, special freight that was not or could not be manufactured within the local area was now easily accessible. The railway allowed young Flamborosians the opportunity to travel to school, go to the 'big city' for a weekend with friends, and there are even stories of railway romance - couples that met while travelling to the same destination.
Yearly farm implement shipment, Aldershot Station, 22 March 1899
Mill Street South, June 2019 - Ryan Gaynor
The logistics of rail can often seem daunting. How does the railway ensure trains arrive safely on schedule, even when mishaps occur? Controlling train movements allowed for the safe operation of a railway. Early signalling devices were lights and flags. The time-interval system was used prior to 1850. In this system, there is a time interval between two successive trains. A train is dispatched only after sufficient time has elapsed since the departure of the previous train. This system works fine just as long as everything goes well with the previous train, but if there is a mishap and the previous train is held up, the system fails, jeopardizing the safety of the trains. By the 1860s semaphore signalling was used both line-side and at junctions and crossings. A General Time Convention was established in the 1870s to coordinate time-related issues.

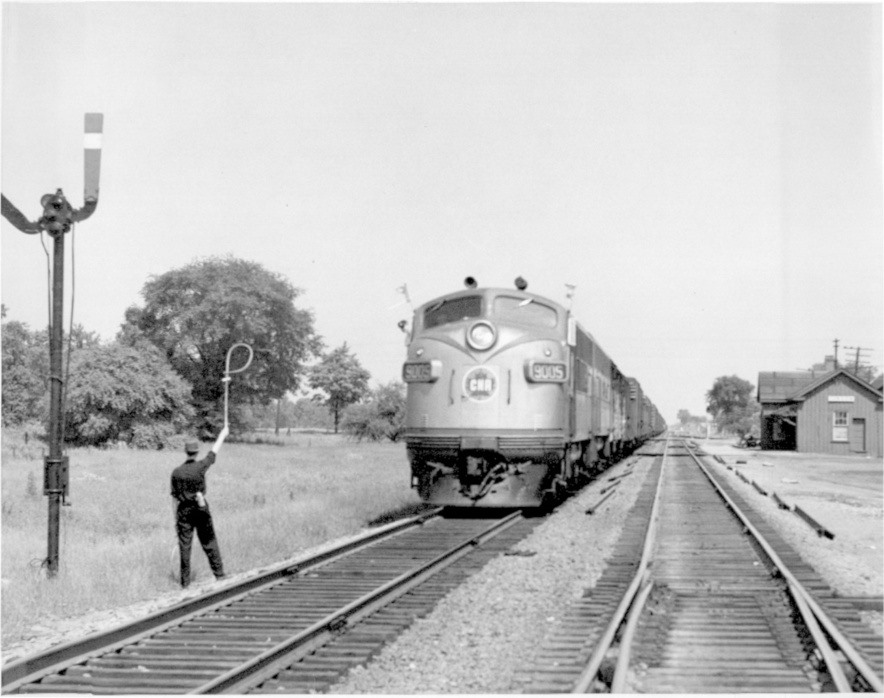

Image sourced from Ingenium Digital Archives CN Images of Canada Collection, ID X-36737

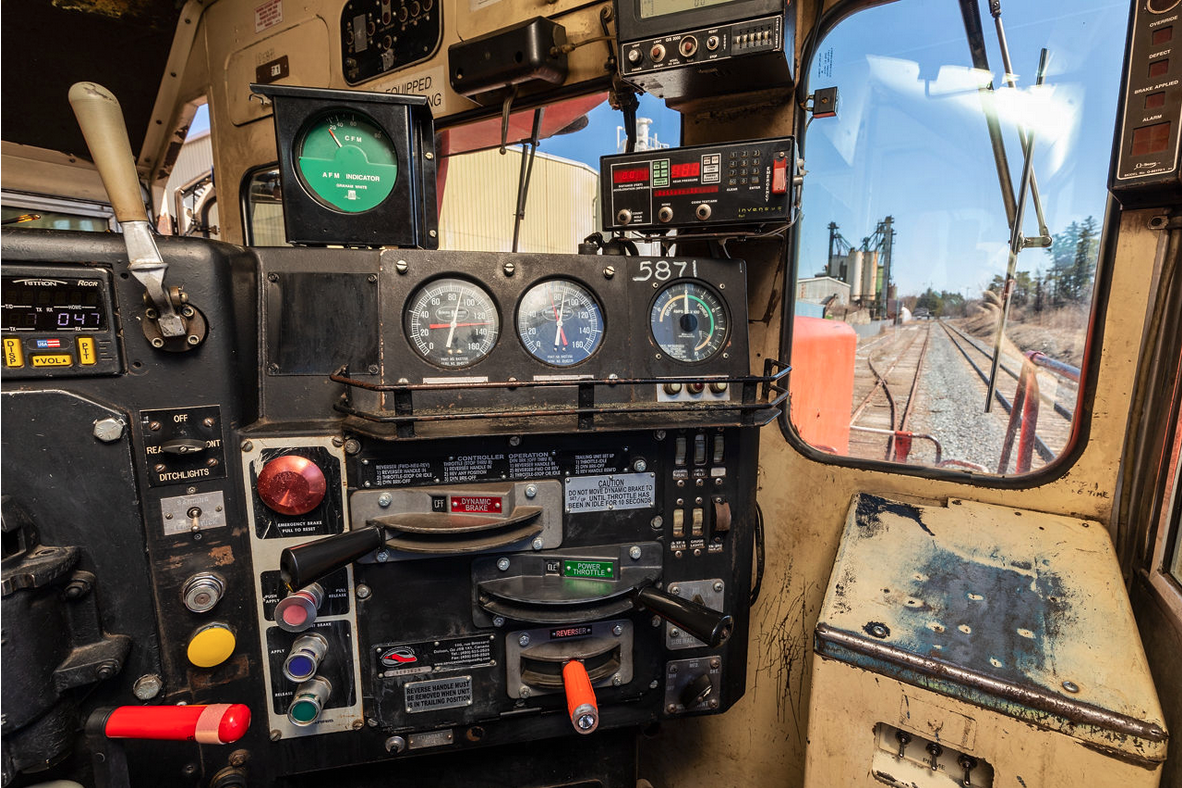

Locomotive Interior, Waterdown North - Ryan Gaynor
The telegraph was quickly adopted by railway officials to regulate train movements. By the 1860s train orders were transmitted by telegraph, augmented by the turn of the century with telephone communications. Communications are vital for train operations, but from the 1950s on telegraph declined in use and was replaced with telephone, radio, and microwave transmissions.

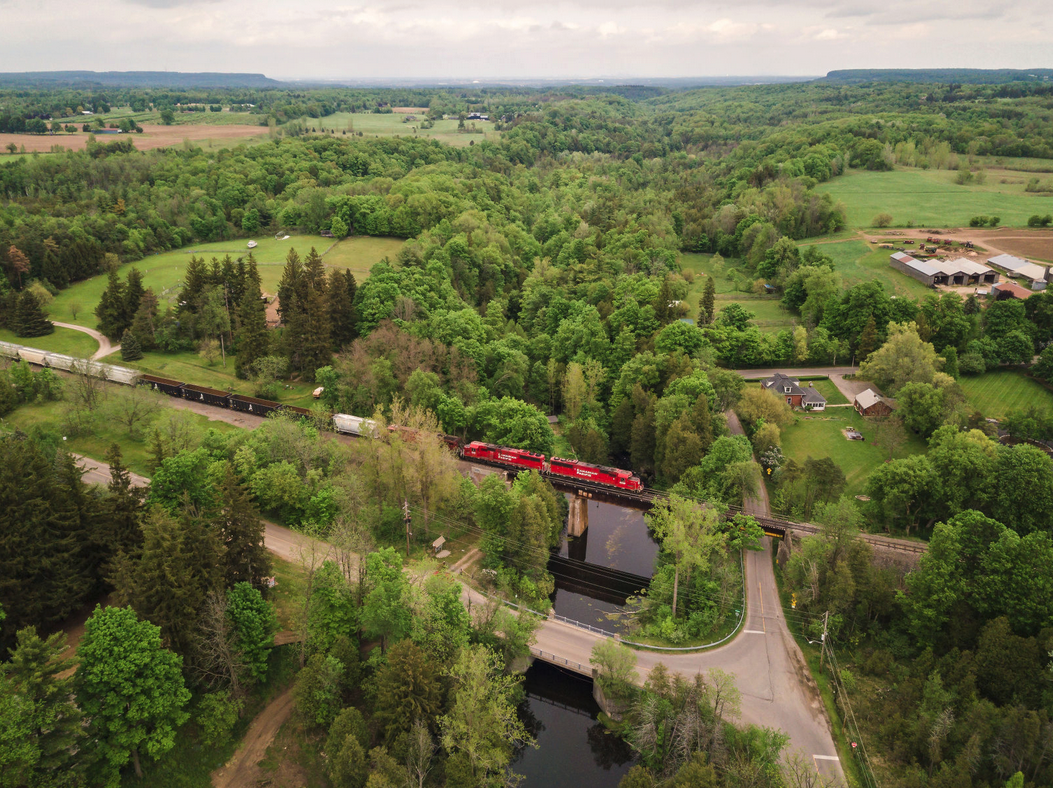

Progreston, May 2021 - Ryan Gaynor

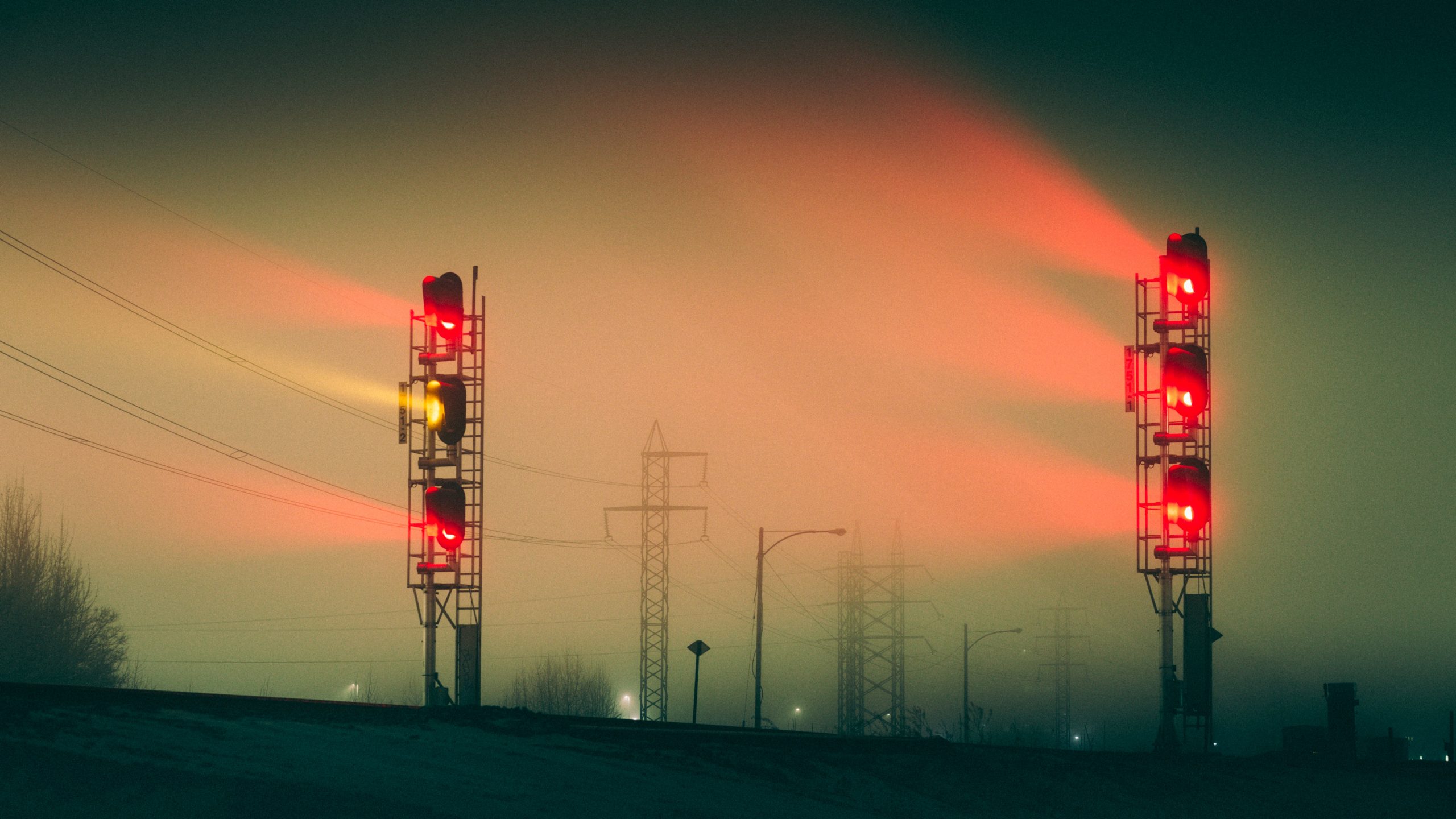

Shortly after the turn of the century, the three-position semaphore signal was introduced. It had three aspects: horizontal for stop, 45 degrees above horizontal for caution, vertical for proceed. In 1908 this type became the standard for new installations. With the introduction of light signals, semaphores were seen as inferior, since they used two different aspects – blade position by day and light colour by night – to convey their message.
Following World War II, signals on the busiest tracks were converted to centralized traffic control (CTC) with long stretches controlled from a single dispatching office. There are a myriad of different signal systems and equipment over railway's history. Cab signalling is another safety system, communicating track status and condition information to the cab compartment. The simplest systems display the trackside signal, while more sophisticated systems also display allowable speed, location of nearby trains, and dynamic information about the track ahead. Some cab signal systems will apply the brakes automatically should the operator not respond to a dangerous situation.
J.E. Archer, Lynden Station Agent 1951 - Bruce Murdoch, Hamilton Spectator

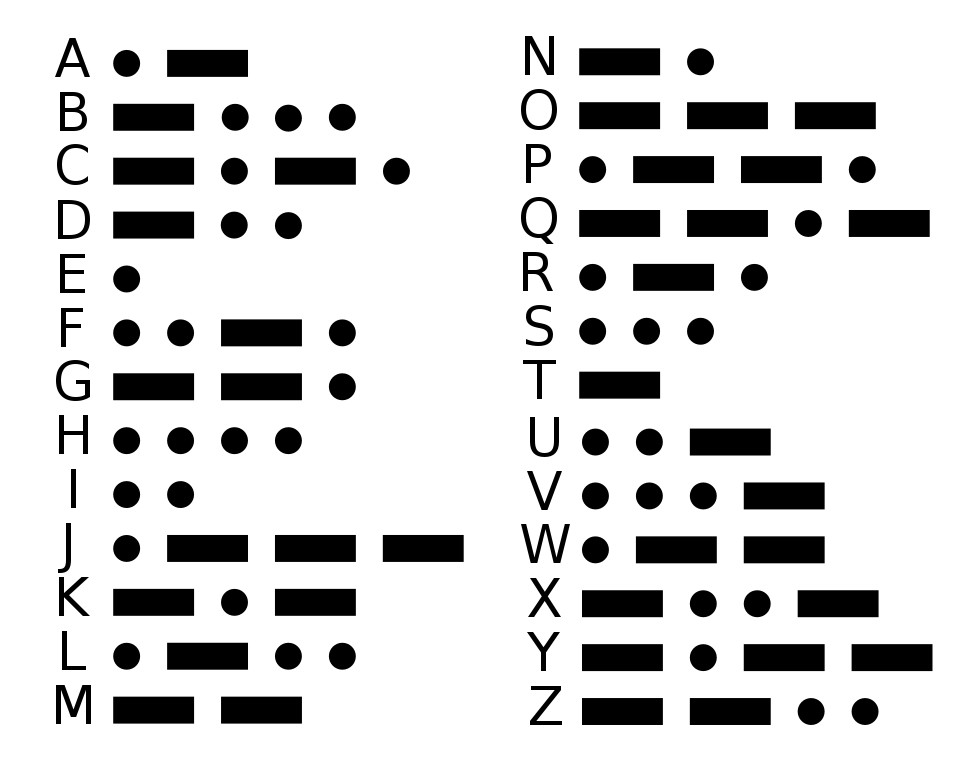

Can you decipher our secret message? Use the international morse code cypher to discover what we'd like you to know!
